Breathing Air Compressors
Haskel and Sierra booster pumps


Load your new Fast 35 air compressor in the truck, van or car trunk and you're off to have fun and not worry about where to get air.

The American Airworks Fast 35 Portable is a reliable personal three stage high pressure breathing air compressor capable of 4700 PSI. Delivers 3.5 CFM of Grade E breathing air. Ideal for isolated location dives, pleasure boats, paintball users, air rifle shooting, laboratory applications requiring high pressure breathing air or wherever portability, space or weight are considerations. Provides 3200 @ 68F - 5000 @ 80F CF of purification. Easy to operate and maintain.

The Fast 35 will provide years of high quality breathing air in locations where air stations are not accessible. This is not a continuous duty compressor. It is not designed for refilling large storage cylinders continuously.

The Fast 35 is a unique portable semi-professional compressor, ready to plug in. The standard version comes with a cable, plug, start-stop switch and hour meter, with the option of a gasoline engine.

Based on proven design, the Fast 35 compressor provides very low turning speed (1,200 rpm), and low noise level. With an excelllent purification system (a coalescing prefilter is installed before the classic active carbon/molecular sieve cartridge), ensuring reliable operation for many years and pure breathing air exceeding by far the requirements of the highest CGA Grade E and European standards (EN 12021).

Maximum Operating Pressure: 4700 PSI

Fast 35E Breathing Air Compressor

Zoom

Fast 35 Single Phase

Fast 35G Breathing Air Compressor

Zoom

Fast 35 Gas

Model Drive Working Pressure PSI Capacity HP Speed Rotation (rpm) Dimensions (in) Weight (lb)
CFM L W H
AC94535-PE1 1phase motor 4700 3.5 3 1200 29 15 19 119
AC94535-PE3 3phase motor 4700 3.5 3 1200 29 15 19 117
AC94535-PG Honda Gas 4700 3.5 4.8 1200 35 15 19 121

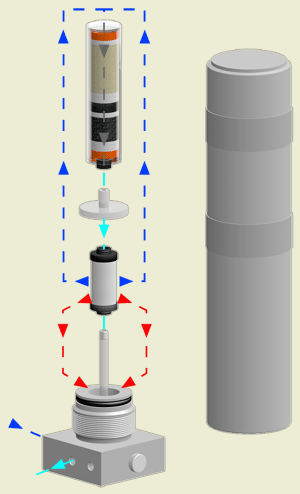

''The'' Unique Purification System


A coalescing pre-filter is installed before the active carbon - molecular sieve cartridge, inside the final breathing air filter, ensures aboslute clean breathing air, exceeding by far the requirements of both CGA Grade E and EN 12021 directives.


Standard Equipment

  • Start/Stop Switch with Thermal Button (electric version)
  • Micronic Air Inlet Filter
  • Hour Meter
  • 2 Large Stainless Steel Intercoolers
  • Large Stainless Steel Aftercooler
  • Interstage Safety Relief Valves
  • Water Separator after 2nd Stage
  • Pressure Maintaining Valve
  • Air Filtration 3200 CF @ 80°F - 5000 CF @ 68°F
  • Manual Condensate Drains
  • Wheels & Tote Handle
  • 5 Ft Fill Hose with Choice of SCUBA, Paintball or Fire Connection
  • 5 Ft Remote Air Intake w/Filter - with Gasoline Unit Only
Optional Equipment
Part Number
Description
AC95514 Auto Stop Pressure Switch for Electric Models
AC95536
Deluxe Paintball Toggle Fill Control
AC94507
Inlet Filter - Replacement
AC94503 Purification Filter - 3200/5000 CF @ 80/68°F Replacement
AC94509
Coalescing Pre-filter, Replacement
AC99050-FG
Synthetic Food Grade Oil (1 Gal) 570º Boiling Point
AC95504
Visual CO/H2O Indicator Module
AC95570 Element Only - CO/H2O Replacement
AC41000-E1
Air Test Kit, Grade E, 1X - more kits here
AC10026
5' SCBA Fill Hose Assembly
AC10026-PB
5' Paintball Fill Hose Assembly
AC10026-SC
5' SCUBA Fill Hose Assembly
* NOTE: Some models prior to 1/13 may have a different style filter. Please contact us to determine the correct filter or upgrade options.
