Breathing Air Compressors
Haskel and Sierra booster pumps


High pressure breathing air compressors for fire fighting, scuba diving, oil patch breathing air, homeland security teams, haz-mat response teams, for industrial breathing air users, laboratory breathing air, commercial diving, and paintball cylinder refilling. Airworks offers a proven and economical compressor for all these applications.

For fire departments, we can stop your running across the county to get your SCBA and SCUBA cylinders refilled! Our dependable HP compressors provides you with CGA grade E breathing air, without having to rob a bank to pay for it. We are proud to offer the American Airworks Fast series of HP breathing air compressors.

User friendly features included for a great value at a low price.


Our Fast 180V breathing air compressors provide 5000 PSI breathing air. The Fast180V breathing air compressor is compact in size, very user friendly and our most popular model. This compressor is great for the small to mid-sized fire departments, fire brigades, dive shops and paintball fields. Complete with a 17,000 @ 80F - 26,180 @ 68F cartridge purification chamber. We have packed this HP compressor with many standard features that others charge extra for. The Fast 180V is a continuous duty compressor.

Max. Operating Pressure: 5000 PSI

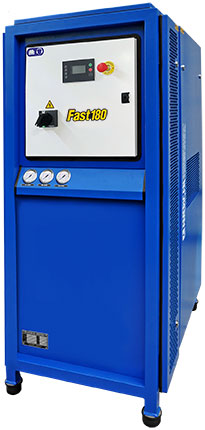

Fast 180v Breathing Air Compressor
Zoom

Fast180 Vertical Electric

 Standard Equipment
  • Star/Delta starter system
  • Micronic Air Inlet Filter
  • Advanced electronic control system providing operating, controlling & servicing data
  • LCD display showing Filling Pressure, Operating Temperature, Running hours and other data such as service remaining hours warning, High temperature alarm, Recording of the last 15 alarms
  • 24V secondary voltage providing safety during routine operation
  • Automatic control of Start/Stop system
  • Pressure maintaining & non return valve
  • Emergency Stop button
  • Moisture Separator after 2nd Stage
  • Coalescing Pre-filter / Water Separator after 3rd stage extending BA filters’ life
  • 17,000 @ 80F - 26,180 @ 68F CF CGA Grade E Filtration
  • High efficiency aluminium cooler (1st & 2nd stage)
  • Large Stainless Steel Intercoolers – Aftercooler (3rd & 4th stage)
  • 4 Interstage Safety Valve
  • Interstage pressure sensors providing emergency shutdown in case of 1st, 2nd, 3rd or 4th stage overpressure
  • Large fan with independent electric motor for optimum cooling
  • Automatic Condensate Drains with manual backups
  • Condensate Collector Reservoir
  • Sound Dampening insulation with very low noise level

Model Drive Working Pressure PSI Capacity HP Speed Rotation (rpm) Dimensions (in) Weight (lb)
CFM L W H
AC94518-VE3 3phase motor 5000 18 15 1000 31 47 70 1036

Optional Equipment
Part Number
Description
AC95565
AirCal 1000 Electronic CO Monitor
AC95566
AirCal 2000 Electronic Moisture/CO Monitor
AC94506 Purification Filter - 17,000 @ 80F - 26,180 @ 68F
AC94507 Inlet Filter - Replacement
AC94509 Coalescing Purifier Pre-filter, Replacement
AC94508 Coalescing Filter Final Stage, Replacement
AC95504 Visual CO/H2O Indicator Module
AC95570 Element Only - CO/H2O Replacement
AC99050-FG
Synthetic Food Grade Oil (1 Gal) 570º Boiling Point
AC41000-E1
Air Test Kit, Grade E, 1X - more kits here
AC10026
5' SCBA Fill Hose Assembly
AC10026-PB
5' Paintball Fill Hose Assembly
AC10026-SC
5' SCUBA Fill Hose Assembly
