For
Helicopters & Airplanes
|
|
|
|
|
|
|
|
|
Haskel Nitrogen Boosters
Helicopter Pop Float System Charging
|
 |
|
 |
Nitrogen or Helium up to 5,000 PSI.
AC90081
(OEM Model 55390)
Shipping Weigh 68 Lbs.
Shipping Dimensions: 36Lx15.5Hx20.5W
AC90081 - $14,422
$13,340 Sale Price
** We sell enhanced models of this pump for less cost below!
|
|
Nitrogen only up to 3,000 PSI.
AC90082
(OEM Model 17934-1)
Shipping Weigh: 65 Lbs.
Shipping Dimensions: 36Lx15.5Hx20.5W
AC90082 - $8248
$7629 Sale Price
|
|
|
|
|
|
|
|
Haskel nitrogen boosters have been specifically designed for helicopters, and fixed wing aircraft, where a portable self-powered booster is needed for ground support. The primary application is to service high pressure on-board Nitrogen or Helium cylinders on helicopters equipped with emergency inflatable pop floats.
(Floats are Required by FAA under FAR Regulation 135.183 if flying over water beyond the point where landing would be possible if engine failed.)
Both units are lightweight, portable, weather resistant and operate in any position. Each unit comes with connecting hoses and both are ready for immediate service.
These Haskel boosters can be used to service other components needing high pressure nitrogen such as shock struts and pre-charging hydraulic accumulators.
Model AC90081 (55390-OEM) two stages boost to 5,000 PSI (379 BAR) Powered from supplied gas cylinders to take flight cylinders to 5,000 PSI from less than two standard DOT 2,200 PSI nitrogen cylinders (226 SCF each); or one 8.0 litre cylinder to 4,500 PSI nitrogen from approximately 2-1/2 DOT storage cylinders; or helium to 2,200 PSI, 215 SCF cylinder using less than two nitrogen cylinders to power the pump. Unit has adjustable auto stop pilot valve. Unit weighs 48 lbs.
Model AC90082 (17934-1-OEM) single stage boost to 2,800-3,000 PSI (193-206 BAR) flight cylinders from one standard DOT 2,200 PSI nitrogen filled cylinder (226 SCF). Use for nitrogen servicing applications. Unit has adjustable auto stop pilot valve. Unit weighs 43 lbs.
See below! Airworks Equivalent boosters with Value Added Features
** Model AC90081-MB - An enhanced AC90081 (55390) with quality line valves and high pressure relief valve, which are easy to use and service. Both are inexpensive and easy to repair. We've added an additional carry handling to our MB model for user comfort. The pump comes with standard high pressure connecting hoses.
Airworks' Factory Equivalent with Value Added Features
AC90081-MB
Call for Pricing
Booster Carry Case
AC90081-C
$1175
Booster Carry Case - Water Tight
AC90081-CS
$1075
Airworks stocks one each of these booster units for fast
shipping. Standard delivery on these units is about eight (8) weeks from Haskel. Units can ship UPS or Fedex.
Haskel aviation oxygen boosters and Haskel aviation nitrogen boosters are used in aviation ground service equipment.
|
|
Haskel 26968 Oxygen Gas Booster System
This Haskel aviation oxygen booster is a two stage booster capable of boosting 100 PSI oxygen up to 3500 PSI. Saves you money by scavenging more gas from your oxygen supply cylinders before returning them to your gas supplier for refilling. The booster pictured is portable and requires little or no annual maintenance. Average overhaul duty cycle is 2000 hours, when cycled at 50 RPMs during use. It has a twelve month factory warranty. It is powered by a low pressure shop compressor providing a minimum of 100-150 PSI and 15 CFM or more. This Haskel oxgyen pump, model 26968, is the favorite of all the U.S. military & commercial airlines for boosting O2.
AC90079
$20,336
$18,810 Sale Price
See booster performance chart.
Dimensions: 32"W x 24"H x 14"D
Weight: 115 lbs.
See Oxygen Safety Practices for Haskel Booster Users
|
|
|
FDA statement on "Oxygen for Aircraft Use [Aviators Breathing Oxygen] means oxygen in fixed or portable oxygen containers or systems intended for commercial or private aircraft use, meeting the U.S.P. specifications and having the special moisture and/or other limiting characteristics required for aviators breathing oxygen (ABO). ABO may not be used for recreational inhalation or medical therapeutic treatment of man or animal."
Similar unit without roll cage with smaller gauges - $15,495 new.
The oxygen pump comes equipped with HP safety relief valve, inlet and outlet 10 micron filters, remote set pilot valves to automatically start and stop the booster at preset pressures. |
|
|
|
Add options to make your unit fully functional
|
|
|
|
|
Option
|
Description
|
|
1
|
Supply Hose, HP, Oxygen, CGA 540 Ftg, 6 Ft
|
|
2
|
Fill Hose, 10 Ft, HP, Oxygen, On/Off & Gas Bleed Valve
|
|
3
|
Seal, Nipple, Hand Tight, 540, Spare
|
|
4
|
Hose, O2, Additional Lengths Available
|
|
|
|
|
|
|

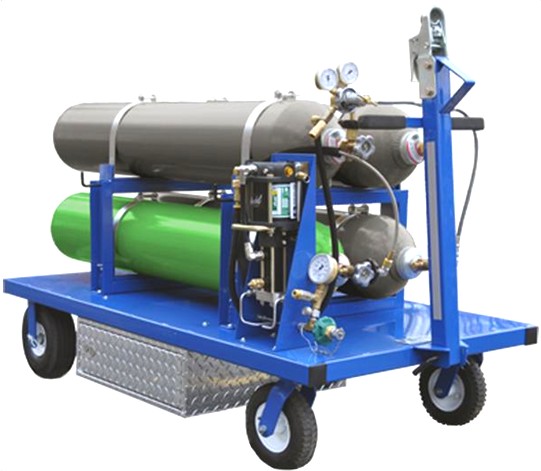

New!! Hi-Flyers can now refill their own oxygen cylinders economically, with their own AviOxyCart™ for personal use or for corporate aircraft. Local FBOs use this cart to provide oxygen refills too. Transfill from rented oxygen gas cylinders to your plane's onboard oxygen cylinder or to your portable O2 cylinders. When the supply pressure drops below your O2 cylinder's maximum working pressure, just start the Haskel gas booster to increase the pressure to the desired fill pressure. Haskel pump is powered by either stored nitrogen gas, regulated down to <150 PSI, or from your own electric shop compressor.
AviOxyCart™ even provides you a low pressure nitrogen source for pumping up struts or aircraft tires with nitrogen gas. Unit can be towed or pushed around the tarmac or your hanger. Steering handle is removable for easier storage. An aluminum treadplate equipment box rides under the cart to keep the oxygen refill hose assembly clean and ready for use. Tires are foam filled to prevent flats and have a manual wheel lock. Cylinders are not included but are optional, rather than pay a monthly or annual cylinder lease.
AC99971-3-25
Call for Price
Click here for our sales flyer. For user recommendations click here.
Shipping dimensions: 77"Lx47"Wx54"H
Shipping weight: 225 Lbs No Cylinders - 825 Lbs w/Cylinders
AviNitroCart™ provides you high pressure nitrogen for recharging pneumatic back up systems and a low pressure nitrogen source for pumping up struts or aircraft tires with nitrogen gas. Unit can be towed or pushed around the airport or within your hanger. Steering handle is removable for easier storage. An aluminum treadplate equipment box rides under the cart to keep the high pressure fill hose assembly clean and ready for use. Tires are foam filled to prevent flats and have a wheel lock. Cylinders are not included but are optional rather than pay a monthly or annual cylinder lease.
AC99971N-3-25
Call for Price
Shipping dimensions: 77"Lx47"Wx54"H
Shipping weight: 225 Lbs No Cylinders - 825 Lbs w/Cylinders
|
|
|
|
|
|
|
|
|
|
|
- Equalize the pressure between your Gas Supply cylinder(s) and your smaller other gas cylinder.
- If the desired pressure is not obtained, simply start cycling your booster to finish filling to the desired pressure. (60 cycles per minute for inert gases ... 50 cycles per minute when boosting oxygen)
- Stop the booster when the desired fill pressure is obtained.
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
