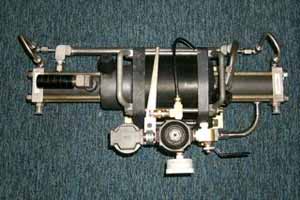

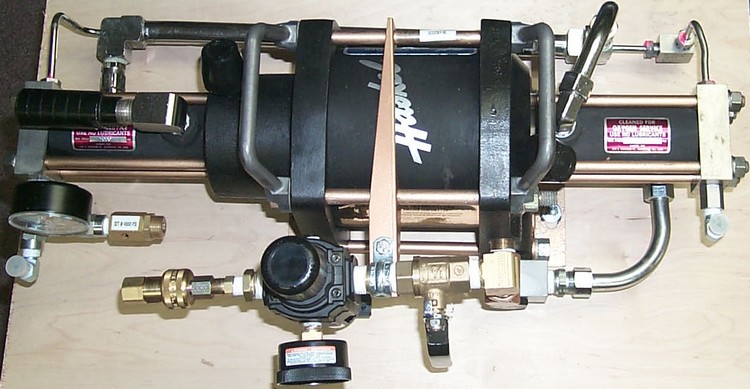

5) 1987 Haskel AGT-15/75 two stage booster, booster is set up to be pneumatically driven with shop or plant air up to 130 PSI. Pump is rated to 20,000 PSI, depending on booster air drive pressure and inlet supply gas pressure. Unit has limitation on inlet gas pressure of approximately 235 PSI, with 1/4" NPT inlet and outlet fittings. Unit is ready to be disassembled, cleaned, re-assembled with new Haskel seal kits, tested and ship out. 90 day warranty at our shop, new bare unit sells for $6995 retail with the low pressure air drive kit , your cost on this inert gas unit $3675. $3975 for oxygen cleaned service. Optional 12 month warranty for $250, does not cover standard wear. Airworks part no. US90080. Stock photo below of AGT-15/30 which is almost identical to the AGT-15/75 unit, less the HP relief valve and outlet gauge.
View AGT-15/75 Performance Chart
6) Sold but we can try to find you another one - 1987 Haskel AGD-30 single stage dual acting rebuilt and oxygen cleaned booster. Booster is set up to be pneumatically driven with shop or plant air up to 150 PSI. Pump is rated to 5000 PSI, depending on booster air drive pressure and inlet supply gas pressure. Unit has new LP air drive kit, new HP relief valve and new 6000 PSI outlet gauge with 1/4" NPT inlet and outlet fittings. Unit was disassembled, oxygen cleaned, re-assembled, tested and ready to go, 90 day warranty at our shop. Optional 12 month warranty for $250, does not cover standard wear. New unit sells for approximately $7600, your cost on this unit $3975. This is one of Haskel's most efficient gas booster for drive air vs amount of gas boosted. Photo to be added soon. Airworks part no. US90064.
View AGD-30 Performance Chart

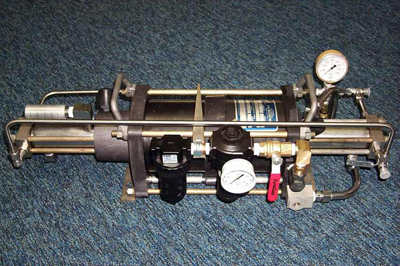

7) 1998 Haskel AGD-32 (model 51632) single stage dual acting booster. Booster is set up to be pneumatically driven with shop <150 PSI or HP air storage reduced to 150 PSI through HP regulator on pump. Pump is rated to 5000 PSI, depending on booster air drive pressure and inlet supply gas pressure. Unit has factory HP air drive kit, remote set auto stop/start air pilot valve, HP relief valve and 6000 PSI outlet gauge with 1/4" NPT inlet and outlet fittings. Unit tested and ready to go, 90 day warranty at our shop. Optional 12 month warranty for $250, does not cover standard wear. New unit sells for approximately $8500, your cost on this unit $5375. This is one of Haskel's most efficient gas booster for drive air vs gas boosted. Stock photo below. Part no. US90076.
|
|
|
click to image to enlarge
|
View AGD-32 Performance Chart

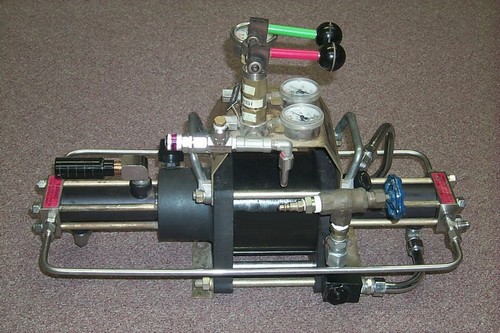

8) Sold but we can try to find you another one - 2003 Haskel AGD-75 single stage dual acting booster, serial number 302/43, set up to easily refill for paintball cylinders. Can be used for SCUBA or SCBA refilling other other inert gas refilling. Booster is set up to be pneumatically driven with shop or plant air up to 150 PSI. Pump is rated to 20,000 PSI, depending on booster air drive pressure and inlet supply gas pressure. Unit has 1/4" NPT inlet and outlet fittings. Unit has been disassembled, cleaned, re-assembled with new Haskel seal kits, tested and ready to go, 90 day warranty at our shop, new unit sells for approximately $6600 w/access, your cost on this unit $3875. Optional 12 month warranty for $250, does not cover standard wear. Airworks part no. US90091. Stock photo below, unit with toggle controls.

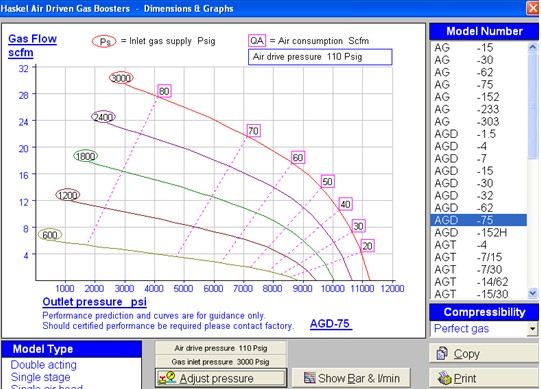

View AGD-75 Performance Chart
Click here for Oxygen Safety Practices for Haskel Booster Users

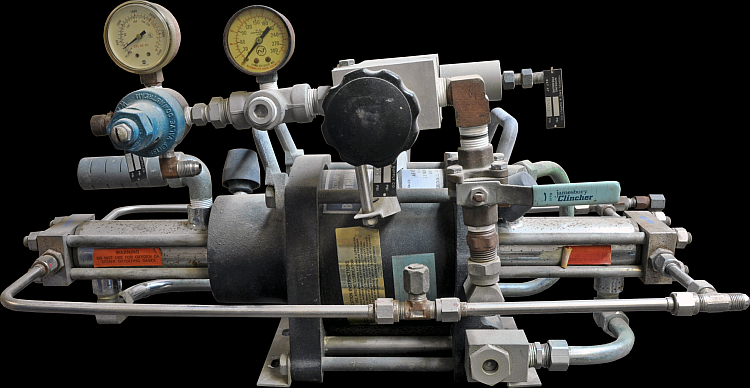

9) 1974 Haskel AGD-15, model 28153, single stage dual acting oxygen cleaned rebuilt booster. Booster is set up as "bootstrap" use, taking stored HP air to power the pumps by reducing HP air to 150 PSI. Pump will boost up to 4500 PSI, depending on booster air drive pressure and inlet supply gas pressure. Unit has new result regulator and relief valve with new 5000 PSI outlet gauge with 1/4" NPT inlet and outlet fittings. Unit can be disassembled, oxygen cleaned or oxygen service. Unit will be tested and ready to go, 90 day warranty at our shop. Optional 12 month warranty for $250, does not cover standard wear on piston seals. New unit sells for approximately $6662, your cost on this unit, O2 cleaned, is $3875 and cleaned for inert gas use $3575 (1 in stock now). Stock photo shown below with HP reducing regulator with gauges to take air from cascade system to power booster. This is available at additional cost. Airworks part no US90068.

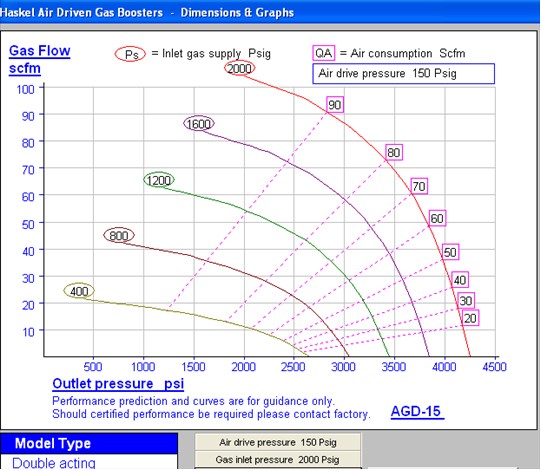

View AGD-15 Performance Chart
10) 1984 Haskel AGD-4 single ended oxygen cleaned rebuilt booster, great for divers, aircraft shops or anyone needing to boost oxygen, nitrogen, argon, helium, etc. up to maximum 1200 PSI. Unit has new LP air drive kit, HP relief valve and 5000 PSI outlet 2.5" gauge. 90 day warranty at our shop. Retail price is $3024, with accessories and rebuilt for oxygen service, your cost $1975. Buy the bare unit "as is", without rebuild and oxygen cleaning, for $1325. We'll test it to make sure it is functioning correctly. Airworks part no US90061.

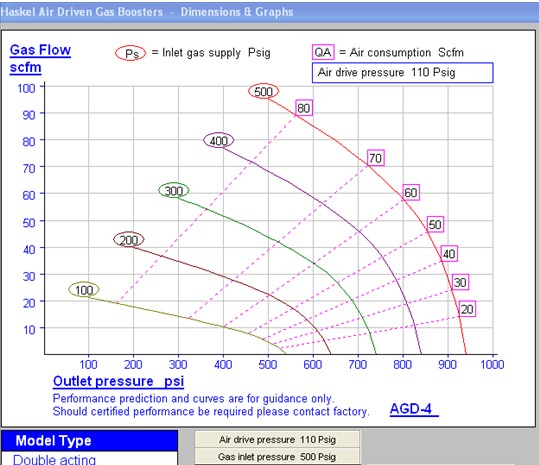

View AGD-4 Performance Chart

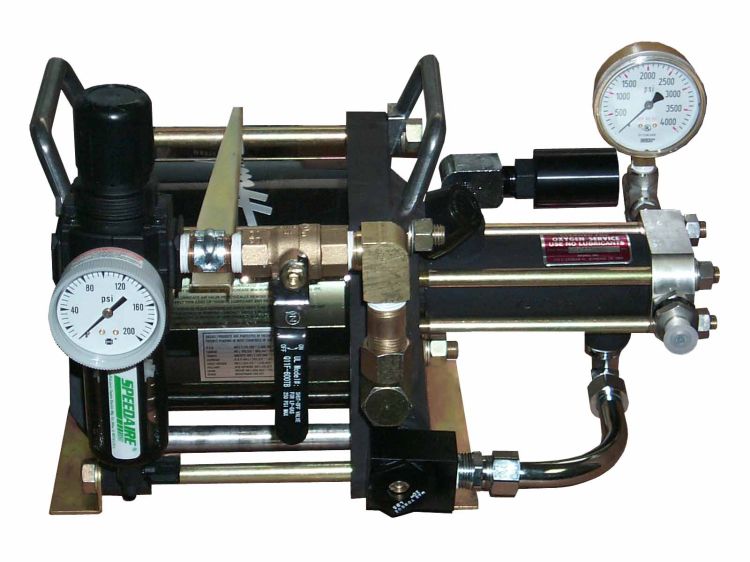

11) 1988 Haskel AG-30 single end oxygen cleaned rebuilt booster, great for divers, aircraft shops or anyone needing to booster oxygen, nitrogen, argon, helium, etc. to 3000-4500 PSI. Unit has new LP air drive kit, HP relief valve and 5000 PSI outlet 2.5" gauge. 90 day warranty at our shop. Optional 12 month warranty for $250, does not cover standard wear on piston seals. Retail $4330 with accessories, your cost $2965. Pump looks identical to AG-75 pump shown below. Part no US90063. (Texas)

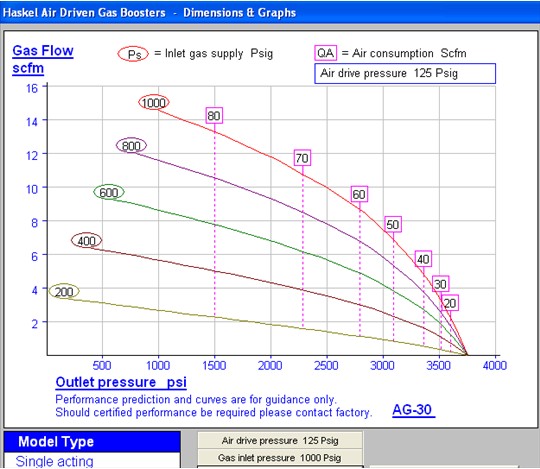

View AG-30 Performance Chart
12) 1977 Haskel AG-75 single ended rebuilt booster, great for divers, aircraft shops or anyone needing to boost oxygen, nitrogen, argon, helium, etc. to 2000-9000 PSI. Unit has new LP air drive kit, HP relief valve and 5000 PSI outlet 2.5" gauge, 90 day warranty at our shop. Optional 12 month warranty for $250, does not cover standard wear. Retail $4475, your cost $3275. Part no US90062. Inert gas rebuild cost $3125. Part no. US90062-N. Stock photo below of new unit.

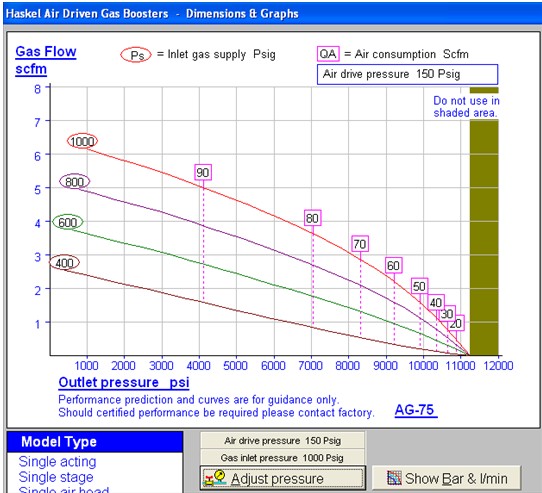

View AG-75 Performance Chart

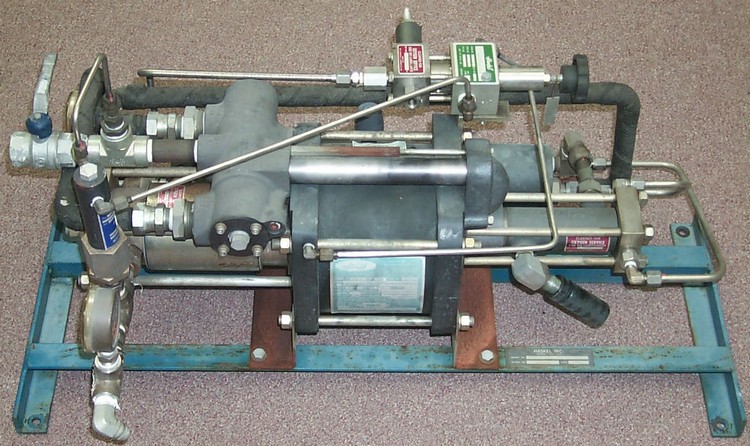

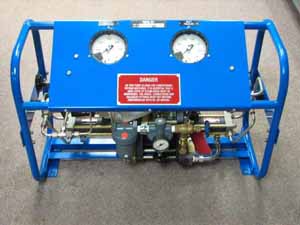

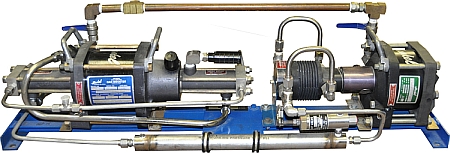

13) 1987 Haskel 8AGT-5/30 (model 52630) two stage oxygen or nitrogen gas booster pump, 97 PSI is the maximum inlet pressure and 5000 maximum outlet pressure, with HP relief valve and auto stop air pilot valve, takes 95 PSI up to 4250 PSI, takes 40 PSI up to 2700 PSI. Can be used with other gases too. Retails for about $11,250 w/access on it, your cost $5900 as is or $7950 with overhaul and 90 day parts warranty. We have eight (2) units available.
View 8AGT-5/30 Performance Chart
Same unit listed above but converted to 8AGT-5/14 (model 52624), two stage oxygen or nitrogen gas booster, maximum inlet supply pressure is 189 PSI. Maximum outlet is 2500 PSI. Retails for about $11,150 w/access on it, your cost is $8175 with overhaul and 90 day parts warranty. Email us for flow charts on either or both units. Click images to enlarge.

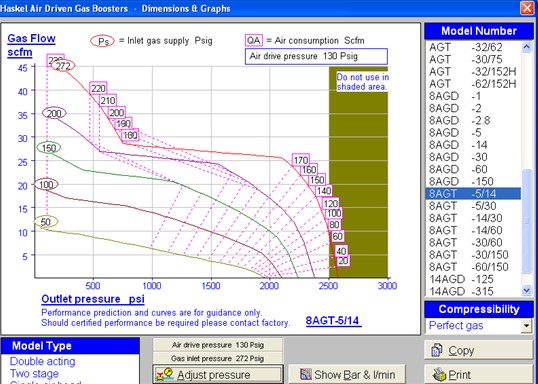

View 8AGT-5/14 Performance Chart
 |
 |
Click here to get a formal quote on one of these boosters. Be specific on which booster and provide us your company name, mailing address and phone number.
